Boeing issues 737 Operations Manual Bulletin after Lion Air accident

By Bjorn Fehrm

November 7, 2018, © Leeham News.: Boeing issued a message to the operators of 737 MAX aircraft yesterday to remind their pilots of the procedures if an unreliable Angle Of Attack (AOA) information is suspected while flying.

Below we describe what these procedures are and why Boeing is reminding its customers about what to do when suspecting a false AOA reading.

Lion Air Boeing 737 MAX 8. Source: Wikipedia.

Boeing’s 737 AOA sensors and how it affects the aircraft

We have read the Boeing bulletin, what has been issued from the Indonesian crash investigators and the FAA, and what has been discussed in media. Below, we try to bring some clarity and perspective into what is sometimes sensational headlines out of a minimum of facts.

The Federal Aviation Administration has today issued an Airworthiness Directive for the 737-8 and -9:

The FAA has issued an Emergency Airworthiness Directive (AD) that addresses possible erroneous angle of attack (AOA) inputs on Boeing 737 Max aircraft. These erroneous inputs can potentially make the horizontal stabilizers repeatedly pitch the nose of the airplane downward, making the aircraft difficult to control. The AD orders operators to revise the airplane flight manual (AFM) to give the flight crew horizontal stabilizer trim procedures to follow under certain conditions. The AD is effective immediately. Operators have three days to revise the AFM. The FAA continues to work closely with Boeing, and as a part of the investigative team on the Indonesia Lion Air accident, may take further appropriate actions depending on the results of the investigation.  The FAA has alerted foreign airworthiness authorities who oversee operators that use the 737 MAX of the agency’s action. “.

The Flight Crew Operations Manual (FCOM) bulletin from Boeing reminds operators that the existing procedures are the correct actions to be taken if an aircraft encounters a false stall warning and flight control recovery triggered by a faulty Angle Of Attack signal.

These procedures and the sensor system triggering them has stayed the same since 20 years as far as we understand. The system and its sensors have not been changed since the introduction of the 737NG in 1998.

In the case of the Lion Air Flight JT610 the correct identification and action upon an incorrect AOA sensor information seem not to have been made. This might have been made more difficult by a simultaneous false reading of airspeed from the same system (one of three systems generating airspeed on the aircraft).

To explain how a false AOA value can affect the aircraft, we need to understand the 737 flight control system for the pitch function. Figure 1 shows the flight control surfaces which exist on the 737NG and MAX.

Figure 1. Boeing 737NG and MAX flight control surfaces. Source: 737NG Flight Crew Operations Manual (FCOM).

Figure 2 shows the pitch control flight control system. This is unchanged for the MAX. The spoiler system, which is not involved in keeping the aircraft controlled in pitch, was changed (from mechanical control to Fly-By-Wire), but not the pitch system.

Figure 2. The 737NG and MAX pitch flight control system. Source: 737NG FCOM.

The systems have a classical architecture for a mechanical flight control system with a 100% hydraulic boost for moving the elevators. The 100% hydraulic boost of the movements from the pilots in pitch, necessitates an Elevator Feel and Centering unit (otherwise the pilots don’t know how much nose up or down command they’ve given as the hydraulics isolates them from the aerodynamic forces acting on the elevators).

This Elevator Feel unit is controlled by an Elevator Feel Computer getting its data from the Air Data Inertial Reference Units (ADIRU). The ADIRUs are the collectors of the data from the Pitot, Temperature and Angle Of Attack sensors, Figure 3. Note the last Alternative static ports and Auxiliary pitot probe shown in the figure; these go to a third totally independent standby Air Data Computer and Display unit in the cockpit.

Figure 3. Boeing 737NG and MAX primary air data sensors with processing systems. Source: 737NG FCOM.

Faulty signals and their effects

The Indonesian crash investigators have said the 737 MAX involved in the crash has flown with unreliable airspeed information in the last four flights. We interpret this as one of the primary ADIRU systems has delivered unreliable airspeed. The flight crew prior to JT610 identified the unreliability to the captain’s displays, which should mean the left ADIRU with sensors had a problem. Exactly what’s the root cause of this unreliable information (sensors, computer, communication to displays…) is not known.

The actions to correct the problem after the prior flight seem not to have worked. In the crash flight, the problem seems to have affected the Angle Of Attack information. Whether the Alpha Vane or some other part of the system generated this false reading is not known.

The AOA sensor measures how large the angle is between the approaching air and the wings pitch incidence. If this angle is too large, the wing stalls (loses lift). To combat such a situation, the 737 (as other airliners) has an implemented Stall warning and recovery system.

The angle of attack is also used to control an Automatic trim action during manual flight to gradually relieve the pilot of any constant stick forces. This action is not described in the 737NG FCOM and might be the reason why the bulletin is restricted to the 737 MAX type, which has implemented this to increase longitudinal stability for this type.

Any such Automatic trim action which doesn’t makes sense has the feel of a runaway pitch trim which is a very common emergency simulator training scenario. In isolation, this should be easy to spot and the correct action (Cut out the trim as described below) could be taken in relative calmness. I’m inclined to think the JT610 crew had to handle a more difficult and stressing false Stall warning and recovery situation, which is the same between the 737NG and the 737 MAX.

The Stall warning and recovery functions are:

  • Above a preset AOA, a stall warning audio voice says: “Stall, Stall, Stall” and the Pilots control yoke on the side with the high AOA start shaking as an additional physical warning
  • If the AOA does not decrease after the triggered Stick Shaker but stays at a high angle, the system then creates a stronger control Yoke force through the Elevator Feel & Centering unit by applying a nose down stick force for the present Yoke position.
  • As an additional measure, the Flight Control Computer starts a stabilizer trim nose down movement using the Autopilot trim channel. The trim action lasts 10 seconds. The Pilot’s can counteract the trim by using their trim buttons, it overrides the Stall system trim.
  • If the AOA persists, the Pitch trim nose down will trigger again after a certain time lapse. If the PIlots have counter trimmed, the system waits 5 seconds until it repeats the trim nose down for 10 seconds.

If the crew suspects an Automatic trim action or Stall warning to be false, the Operating Procedure is to switch off the Nose down trim action by disengaging both trim channels of the Pitch trim system and trimming the stabilizer manually by the wheel. These switches are placed on the central pedestal, Figure 4.

Figure 4. Control stand Switch to Cut Out the AUTO PILOT’s STAB TRIM function (No 6) and the PIlot’s trim channel (No 5). No 4 are the Pilot’s trim buttons operating the MAIN ELECTrical trim (No 5) in normal operation. Source: 737NG FCOM.

It’s this action that Boeing’s message conveys, reminding the 737 operators this is the procedure for suspected false stall actions caused by a false AOA reading.

The 737 stall warning and recovery system

One can react to the above actions of the flight control system in the 737. But one should know this chain of actions have been defined by the 737 Flight Control team after flying the 737 since 1967, with many thousands of work hours research behind the design and over 50 years of airliner flight control design experience. It has also operated without known adverse effects in thousands of 737NG over the last 20 years.

In this case, the events might have overloaded the Flight Crew on JT610. We don’t know why. And it’s best to wait until we do. We need to understand what exactly the flight crew was confronted with and their actions as a result.

It’s by now clear it’s not a simple fact of them stalling the aircraft due to one side airspeed readings being unreliable. They had more to fight, so far is understood. But exactly what, we don’t know and therefore we don’t speculate further.

What we wanted to do with this article is pointing out, as far as we know, the system involved is a tried and tested system. Why this didn’t help the JT610 crew, we don’t know, but it will be communicated in due course.

61 Comments on “Boeing issues 737 Operations Manual Bulletin after Lion Air accident

  1. “The spoiler system, which is not involved in keeping the aircraft controlled in pitch, was changed (from mechanical control to Fly-By-Wire), but not the pitch system.”

    This is (strictly speaking) incorrect. An un-commanded spoiler deployment can effect the airplane pitch-rate severely.

    A possible scenario could be: spoilers pop up un-commanded (for whatever reason) during climb, leading to a pitch up, the pilot would then counter to level off and investigate. Spoilers go back to neutral (for whatever reason), airplane dives, the process gets repeated. Ultimately a divergent Phugoid oscillation could occur.

    • The Boeing Bulleting is sent out after getting information from the Flight Data Recorder from JT610 via the Indonesian Investigation authorities. And it’s done in coordination with the FAA.

      The bulleting speaks about the correct actions to take regarding the Automatic trim and Stall warning and recovery system in case of a false AOA information. This has no connection to the Spoiler system.

      Yes, a faulty spoiler deployment can affect pitch, as can a faulty flap, slat and even landing gear deployment. But this is not what the Boeing Bulletin is about.

  2. Key for me in Bjorn’s explanation is the statement: “…we try to bring some clarity and perspective into what is sometimes sensational headlines out of a minimum of facts.” Time will tell as they piece this accident together. It is comforting to know that the basic design of some of the components involved has been proven over decades. But one last speculation could lie, as someone mentioned in the earlier story here, is that it could be FADEC, or possibly a faulty board affecting software. But this article is a strong explanation of the redundancies built into this airplane.

    • Personally I would find it informative if the words “Boeing 737 MAX Emergency Airworthiness Directive (AD)” would be in the title or anywhere in the first paragraph. Because it is. But I understand it is sensitive and we don’t want the analyzes being overshadowed with emotions.

  3. Hello Bjorn,

    I very much appreciate your posts, such as this one, that report with a level of detail and expertise that is hard to find in the popular aviation press, on technical and engineering information that is hard for those of us not working in commercial aviation to come by.

  4. Hi Bjorn,

    If you get an unreliable airspeed indication, a stall warning and an automatic nose down, how do you decide what to trust and which procedure to apply? If for instance, the pilots thought insufficient airspeed was the problem, wouldn’t they have ‘helped’ along the automatic stall recovery by confirming the nose down attempt instead of stopping it?

    There have been some reports that the final dive was at high speed. I wonder if this was due to the wrong procedure being applied where the pilots thought the airspeed was not enough.

    • The Pilots have an independent air data/display unit.

      737 Standby PFD placed between Primary PFDs.They are trained to check this against the two Primary flight displays and through observing all three decide which one is not to rely on. I’m convinced they did and identified one of the three air data channels as having a problem.

      In this case, one of the results was a trigger of erroneous Automatic trim or false Stall warnings. It seems the JT610 investigation sees from the Black box data the crew did not cut out the trim action of the Automatic trim or Stall warning system, why we don’t know.

      • Maybe they trusted “the system” more than their own observations / interpretations..

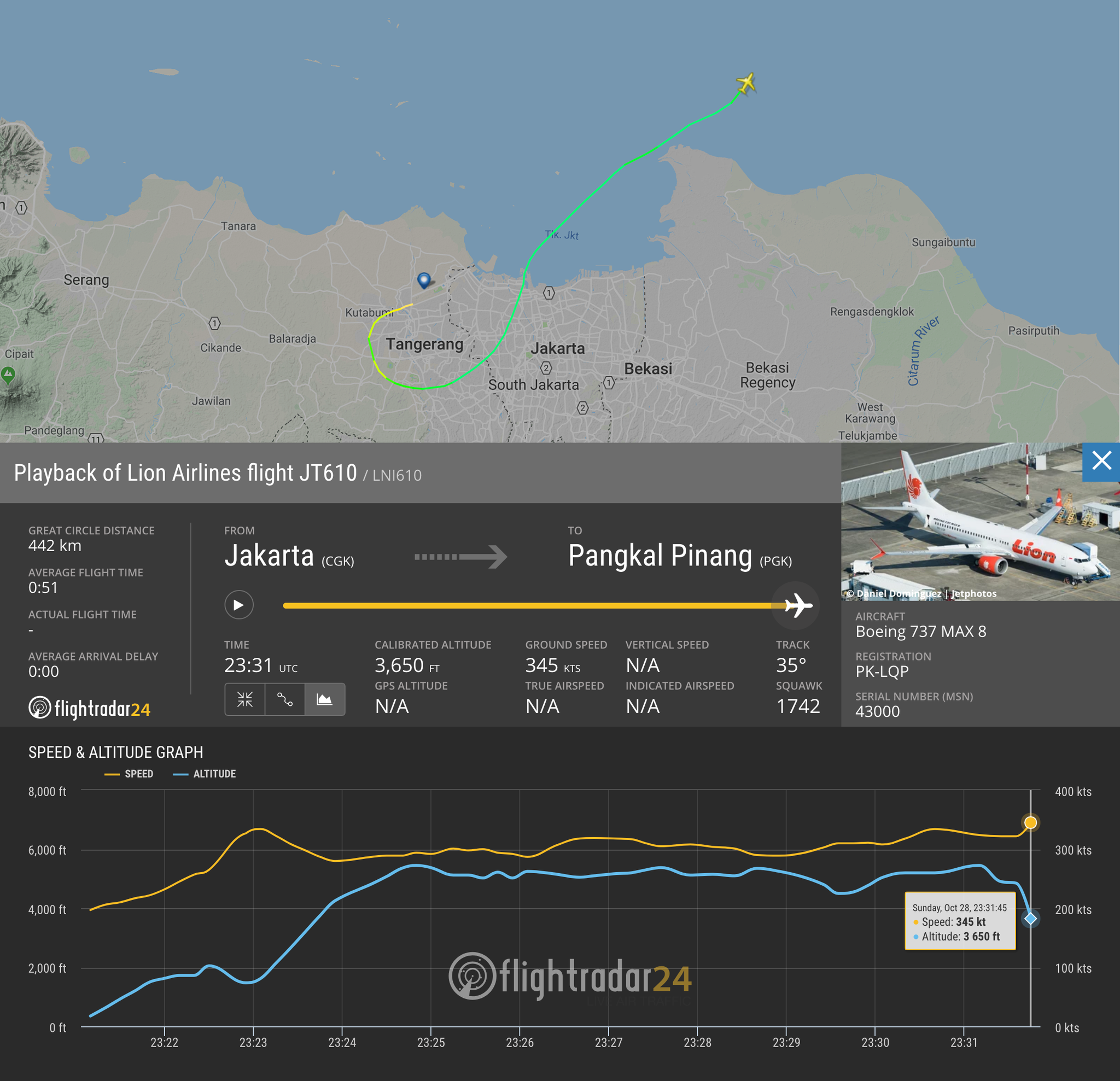

        Flight profiletracking indicates they where going through their checklists for at least 5-6 minutes.
